Manual wire rope winch hoist

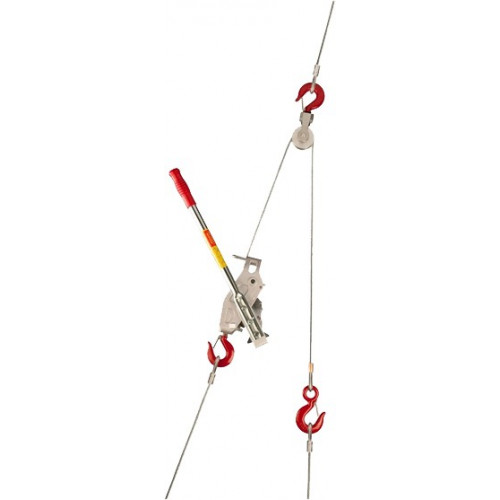

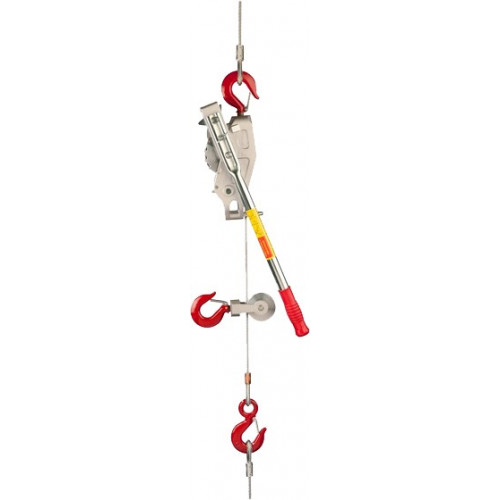

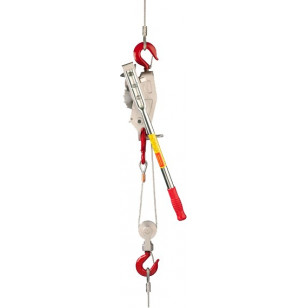

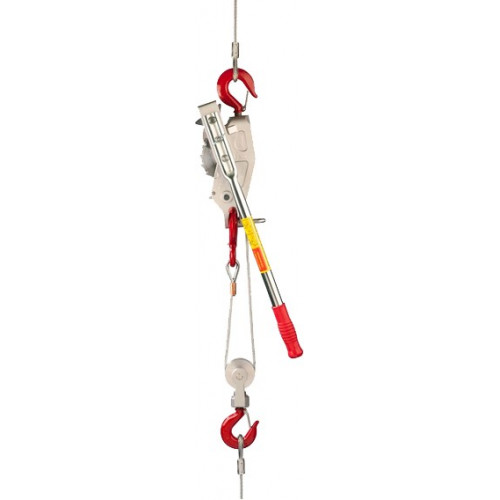

3 possible positions : Double line lift, single line - straight or pulley block lift
Lighter than a chain hoist : from 4 kg to 6 kg
Precise adjustment : moves of 7 mm per ratchet teeth for 500 kg and 1000 kg types and of 8 mm per teeth for the 1600 kg type
Code
|
Position A
|
Position B
|
Position C
|
Load
(kg)
|
Lifting height
(m)
|
Load
(kg)
|
Lifting height
(m)
|
Load
(kg)
|
Lifting height
(m)
|
|
200 664
|
500
|
3,80
|
250
|
7,60
|
250
|
7,60
|
|
-
|
1000
|
1,55
|
500
|
3,10
|
500
|
3,10
|
|
200 662
|
1000
|
2,00
|
500
|
4,00
|
500
|
4,00
|
|
114 603
|
1000
|
4,60
|
500
|
9,20
|
500
|
9,20
|
|
200 663
|
1600
|
3,30
|
800
|
6,60
|
800
|
6,60
|
