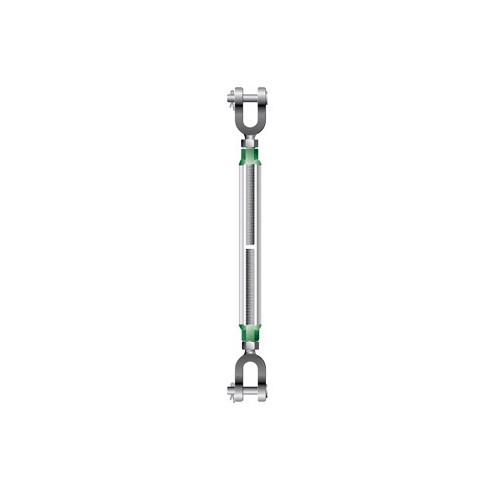

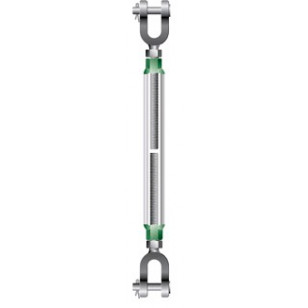

High Tensile jaw-jaw turnbuckle

High tensile steel turnbuckle with two jaw endings

Available in two versions : with cotter pin or with safety bolt and cotter pin

Cotter pin

Safety Bolt

WLL
(t)

Diameter
(inch)

Length min/max
(mm)

Weight
(kg)

Code



a

b

c



103153

 NOT AVAILABLE

0.54

3/8

273

409

0.57

103154

1

1/2

305

435

0.96

103 155

1

1/2

380

587

1.18

301 789

1

1/2

455

739

1.50

300 432

1.59

5/8

346

469

1.84

103 159

1.59

5/8

421

622

2.12

301 424

1.59

5/8

496

773

2.56

301 566

2.36

3/4

368

487

2.68

301 567

2.36

3/4

442

639

3.03

103 163

2.36

3/4

518

791

3.29

301 063

2.36

3/4

671

1095

3.65

103 165

3.27

7/8

559

825

4.90

301 793

3.27

7/8

712

1131

5.95

301 569

4.54

1

447

555

5.21

103 168

4.54

1

598

859

6.96

103 169

4.54

1

750

1164

8.4

301 571

4.54

1

902

1469

8.9

On demand

301 797

6.9

1 1/4

641

916

11.9

301 798

6.9

1 1/4

793

1218

13.6

301 799

6.9

1 1/4

961

1538

14.2

301 800

9.71

1 1/2

675

941

16.9

301 306

9.71

1 1/2

825

1244

19.3

301 801

9.71

1 1/2

980

1550

20.7

301 802

12.7

1 3/4

933

1310

25

301 803

12.7

1 3/4

1084

1614

28.7

301 804

16.8

2

1153

1672

45.4

301 805

27.2

2 1/2

1254

1830

88

301 806

34

2 1/2

1305

1878

98

More details

    Attachment Clevis
    Material High tensile steel
    Safety factor 1:5
    Coating Galvinised coating
    Standard Generally complies with ASTM F1145-92 standard
