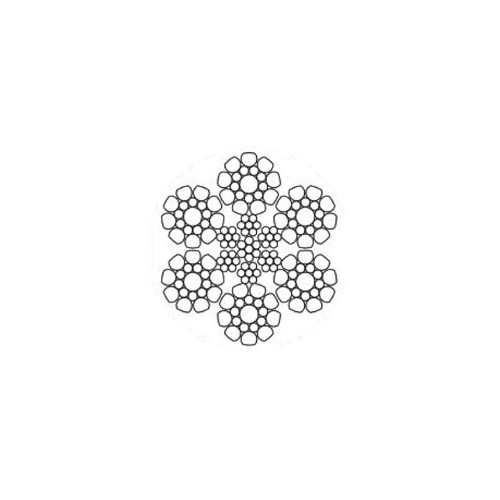

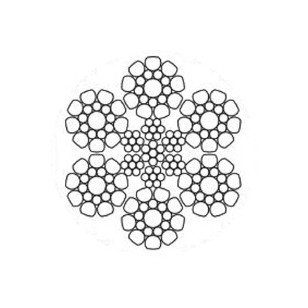

Six compacted strands wire rope
Very high resistance to abrasion through greater contact area
The lay direction of the ropes can be right hand or left hand
The lay type of the ropes can be ordinary or lang
Diameter
(mm)
|
Construction
|
Weight
(kg/m)
|
Min. breaking load
(Kn)
|
|
|
|
|
1770N/mm²
|
1960N/mm²
|
2160N/mm²
|
|
10
|
6 x K19 WS + IWRC
|
0,44
|
79
|
87,7
|
97
|
|
11
|
6 x K19 WS + IWRC
|
0,54
|
97
|
107
|
118
|
|
12
|
6 x K19 WS + IWRC
|
0,64
|
114
|
126
|
139
|
|
13
|
6 x K19 WS + IWRC
|
0,76
|
135
|
150
|
165
|
|
14
|
6 x K26 WS + IWRC
|
0,87
|
153
|
169
|
186
|
|
15
|
6 x K26 WS + IWRC
|
0,98
|
172
|
191
|
210
|
|
16
|
6 x K26 WS + IWRC
|
1,12
|
198
|
219
|
241
|
|
17
|
6 x K26 WS + IWRC
|
1,29
|
227
|
251
|
277
|
|
18
|
6 x K26 WS + IWRC
|
1,42
|
250
|
277
|
305
|
|
19
|
6 x K26 WS + IWRC
|
1,6
|
281
|
311
|
343
|
|
20
|
6 x K31 WS + IWRC
|
1,77
|
312
|
345
|
380
|
|
22
|
6 x K31 WS + IWRC
|
2,15
|
378
|
419
|
462
|
|
24
|
6 x K31 WS + IWRC
|
2,59
|
455
|
504
|
555
|
|
26
|
6 x K31 WS + IWRC
|
3,08
|
540
|
598
|
659
|
|
28
|
6 x K31 WS + IWRC
|
3,5
|
616
|
682
|
752
|
|
30
|
6 x K36 WS + IWRC
|
4,05
|
710
|
786
|
866
|
|
32
|
6 x K36 WS + IWRC
|
4,59
|
805
|
891
|
982
|
|
34
|
6 x K36 WS + IWRC
|
5,21
|
914
|
1012
|
1115
|
|
36
|
6 x K36 WS + IWRC
|
5,83
|
1022
|
1132
|
1248
|
|
38
|
6 x K36 WS + IWRC
|
6,5
|
1139
|
1261
|
1390
|
|
40
|
6 x K36 WS + IWRC
|
7,22
|
1266
|
1402
|
1545
|
|
42
|
6 x K36 WS + IWRC
|
7,88
|
1382
|
1530
|
1686
|
|
44
|
6 x K36 WS + IWRC
|
8,77
|
1536
|
1701
|
1875
|
|
46
|
6 x K36 WS + IWRC
|
9,52
|
1668
|
1847
|
2035
|
|
48
|
6 x K36 WS + IWRC
|
10,37
|
1817
|
2012
|
2217
|
|
50
|
6 x K36 WS + IWRC
|
11,23
|
1968
|
2179
|
2401
|
|
52
|
6 x K36 WS + IWRC
|
12,18
|
2135
|
2364
|
2605
|
