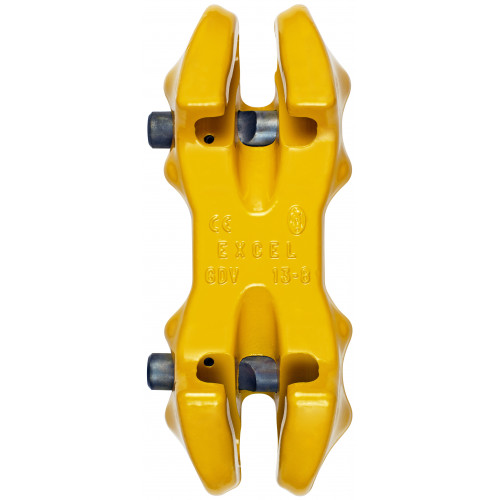

Grade 8 double clutch with locking

This product can be supplied with a works certificate, a 3.1 material certificate and/or EC Declaration of Conformity

Code

WLL
(t)

Chain diam.
(mm)

Weight
(kg)

304 763

1.12

6

0.49

300 069

2

8

0.77

200 211

5.3

13

2.85

More details

    Material Acier allié, classe 80, trempé et revenu
    Safety factor 1:4
    Standard Complies with EN 1677-1 standard
