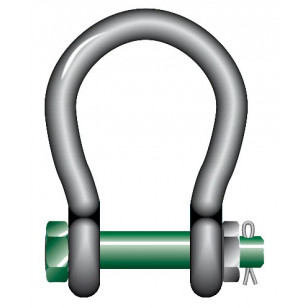

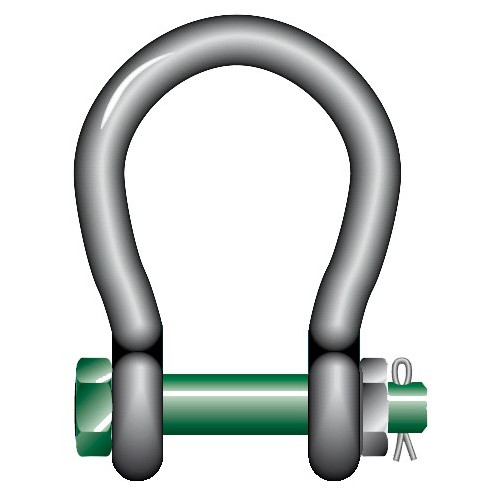

Wide mouth shackle

Bow shackle with safety pin
This product can be supplied with a works certificate, 3.1 material certificate, manufacturer test certificate and/or EC Declaration of Conformity



WLL
(t)

Weight
(kg)





4.75

2.08

6.5

3.14

8.5

4.36

9.5

5.95

12

7.87

16

12.5

25

18

30

25

55

45

75

70

More details

    Body shape Wide opening
    Locking Safety pin
    Material Alloy steel, grade 8, quenched and tempered
    Safety factor 1:6
    Standard ASME B30.26
