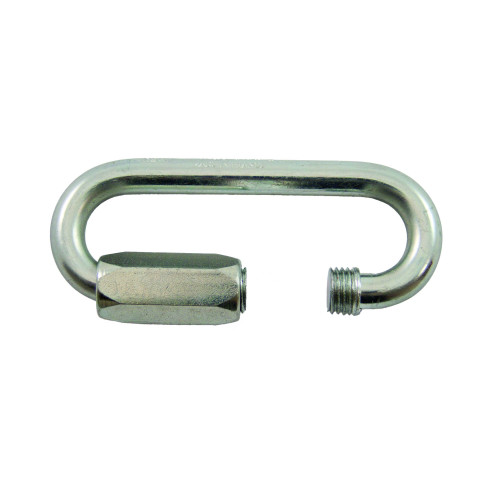

Large opening quick link

This product can be supplied with the marking of the diameter, CE, WLL, «quick link» GO, batch
number

Code

WLL
(t)

Weight
(kg)





308 384

0,045

0,007

308 385

0,09

0,010

105 706

0,16

0,015

105 707

0,25

0,025

105 708

0,35

0,041

301 128

0,5

0,060

105 709

0,65

0,091

308 386

0,8

0,118

105 712

1

0,157

300 760

1,25

0,268

303 133

2

0,420

300 998

2,5

0,630

306 821

3

0,879

301 000

3,6

1,220

More details

    Material Bolt in FM8 steel
    Material Nut in A-42Fm steel
    Safety factor 1:5
