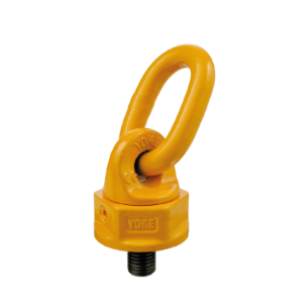

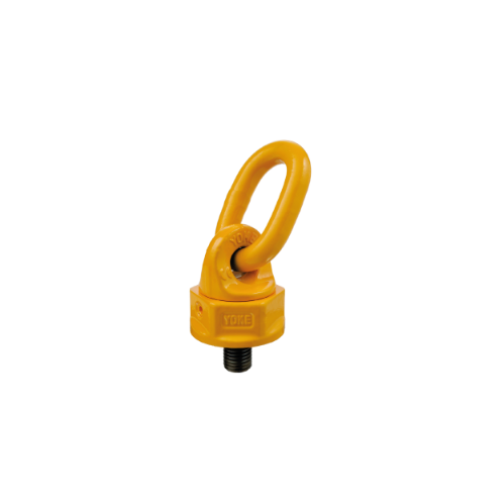

Anneau de levage double articulation émerillon mâle

Eye rotates thought 360°

Setting the direction of pull even in tighly screwed state

Code

WLL
(t)

Y, [Z]

Weight
(kg)

308 283

0.4, [0.6]

0.2

 308 284

0.6, [0.9]

0.2

308 285

0.7, [1.2]

0.3

308 286

1.5, [2.6]

0.5

308 287

2.5, [4]

1

308 288

4, [7]

2.2

308 289

6, [10]

4.5

308 290 10, [15]

4.6

308 291

13, [17]

5.5

308 292

16, [18]

6.1

308 293

20, [25]

10.5

308 294

22, [28]

10.7

308 295

25, [28]

11.6

308 296

40, [50]

30.6

308 297

48, [50] 31.9

308 298

50, [50] 33.9

More details

    Material Acier allié trempé et revenu
    Safety factor 1:4
    Standard EN 1677-4
