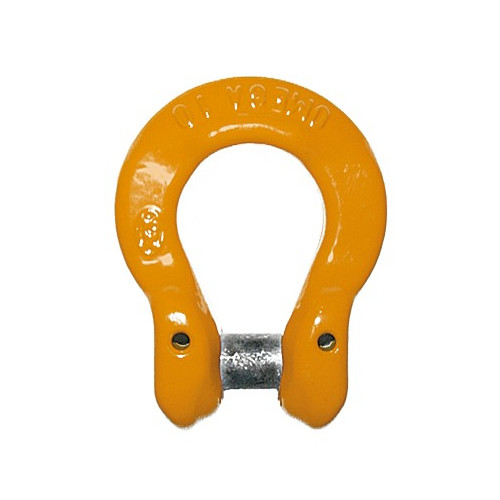

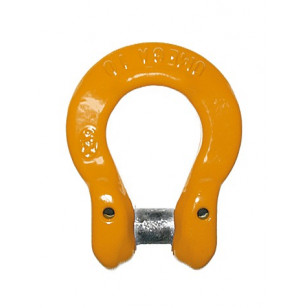

Grade 8 Omega link

This product can be supplied with a works certificate, a 3.1 material certificate and/or EC Declaration of Conformity

Code

WLL
(t)

Chain diameter
(mm)

Weight
(kg)







301 774

0.8

5

0.07

301 773

1.12

6

0.07

105 668

2

7-8

0.18

105 669

3.2

10

0.28

105 670

5.4

13

0.64

105 671

8.2

16

1.21

301 775

12.8

18-20

2.09

More details

    Colour Yellow or red
    Material Acier allié classe 80, trempé et revenu
    Safety factor 1:4
    Standard Complies with EN 1677-1 standard
