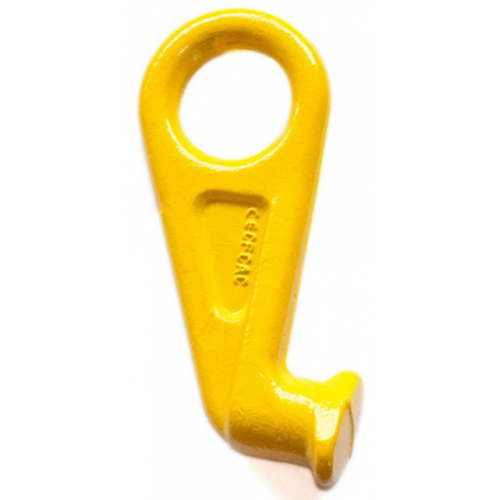

Lugs for lifting containers by the standard ISO corners
Lugs of two kinds :
Slanted pulling of the containers, lifted from the bottom and used with a single lifting beam
Vertical pulling of the containers lifted from the top or bottom and used with a spreader frame.
|
Information for 1 hook
|
Code
|
WLL
(t)
|
Lifting
|
Weight
(kg)
|
|
308 220
|
12,5
|
right
|
4
|
|
309 085
|
12,5
|
turned 45° to the left
|
4
|
|
309 086
|
12,5
|
turned 45° tu the right
|
4
|
