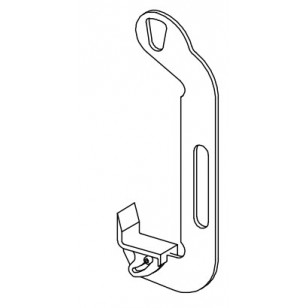

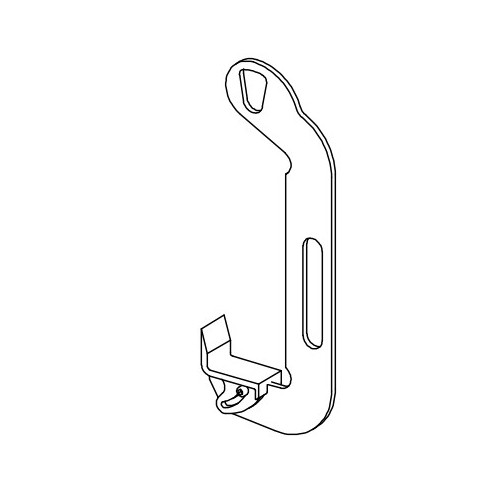

Tuning C hook

Tuning C hook

Lifting accessory to lift and turn coils from the internal diameter

The lifting C hook is equipped with a guiding handle
The hinged shoe of the hook provides gradual and even turning

Code

WLL
(t)

Weight
(kg)

308 714

0.5

5.5

308 715

1

9

308 716

2

16

308 717

2

31

More details

Download the pdf data sheet

    Use Hook and C hook for lifting
    Material Corps en acier allié soudé
    Safety factor 1:3
    Standard Individually tested to two times the working load limit
    Standard Complies with EN 13155.2003 standard
