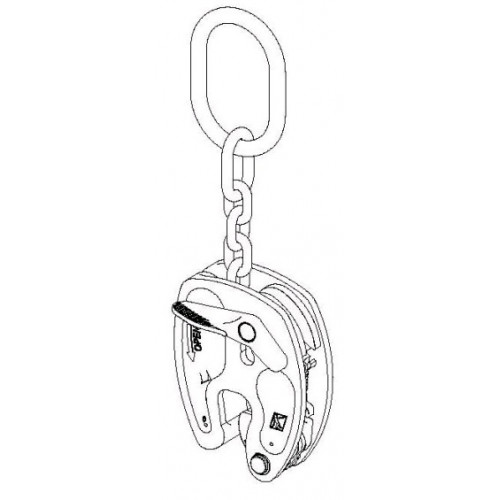

Multi-positions clamp for plates

Clamps for the vertical lifting and moving of plates

Lock open, lock closed ability with a latch for pretension on plate
Load maximum surface hardness: 300 HB and minimum tensile strength 20 daN/ mm²

Code

WLL
(t)

Jaws
(mm)

Weight
(kg)

200 643

0.75

0-15

1.7

200 644

1

0-20

3.8

200 645

2

0-25

6.4

300 850

3

0-30

12

More details

    Use Clamp for plates
    Material Body in alloy forged steel
    Safety factor 1:3
    Standard Individually tested to two times the working load limit
    Standard Complies with EN 13155.2003 standard
