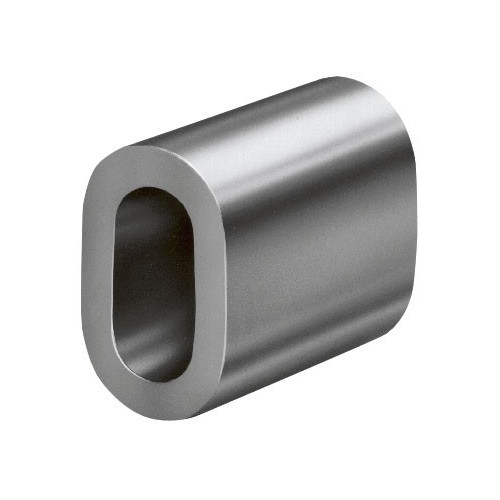

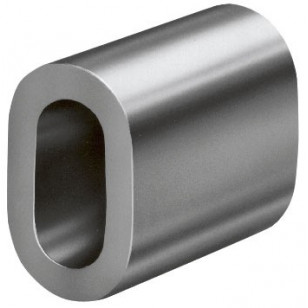

Ferrule for wire rope swaging
Suitable for steel wire ropes compliant with EN 12385-4
Code
|
Rope diam.
(mm)
|
Ext. diam. after swaging
(mm)
|
|
|
|
106 359
|
2
|
4
|
|
106 360
|
2,5
|
5
|
|
106 361
|
3
|
6
|
|
308 389
|
3,5
|
7
|
|
106 363
|
4
|
8
|
|
308 390
|
4,5
|
9
|
|
106 365
|
5
|
10
|
|
106 366
|
6
|
12
|
|
308 391
|
6,5
|
13
|
|
106 367
|
7
|
14
|
|
106 368
|
8
|
16
|
|
106 369
|
9
|
18
|
|
300 108
|
10
|
20
|
|
106 371
|
11
|
22
|
|
106 372
|
12
|
24
|
|
106 373
|
13
|
26
|
|
106 374
|
14
|
28
|
|
106 375
|
16
|
32
|
|
106 376
|
18
|
36
|
|
106 377
|
20
|
40
|
|
106 378
|
22
|
44
|
|
106 379
|
24
|
48
|
|
106 380
|
26
|
52
|
|
106 381
|
28
|
56
|
|
106 382
|
30
|
60
|
|
106 383
|
32
|
64
|
|
106 384
|
34
|
68
|
|
106 385
|
36
|
72
|
|
308 392
|
38
|
76
|
|
106 387
|
40
|
80
|
|
308 394
|
44
|
88
|
|
308 396
|
48
|
96
|
|
308 397
|
52
|
104
|
|
308 398
|
56
|
112
|
|
308 399
|
60
|
120
|
